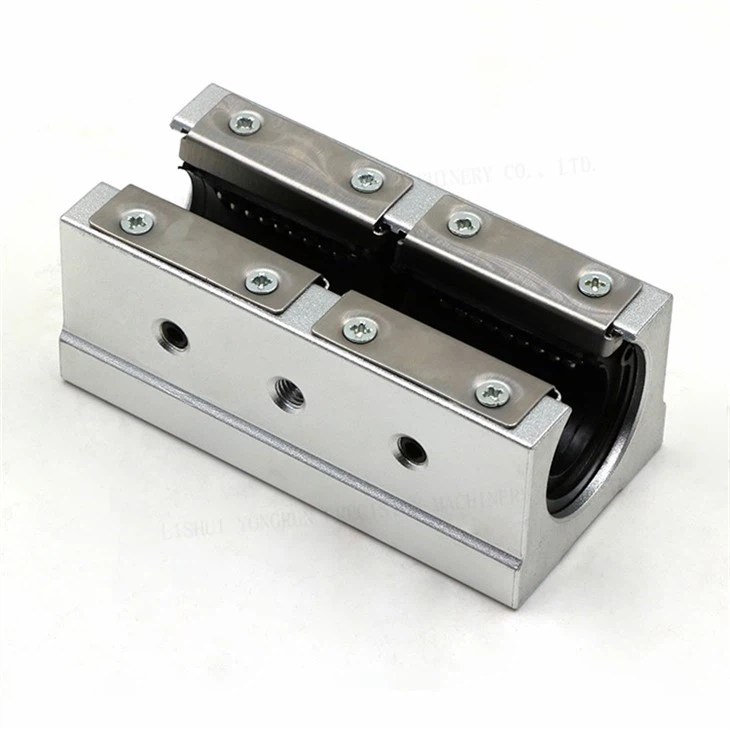

SBR25LUU
Linear Motion Ball Bearings Slide Unites is a linear motion system produced at low price for use with an infinite stroke and a cylindrical shaft. Since the bearing ball is in factor contact with the shaft, the load is small. The metal ball rotates with minimal frictional resistance, so as to obtain high-precision and smooth motion. Linear bearings are extra and greater widely used in precision equipment such as electronic equipment, meals machinery, packaging machinery, medical machinery, printing machinery, material machinery, machinery, instruments, robots, device machinery, CNC machine tools, cars and digital 3-dimensional coordinate measuring gear Or in the specific equipment industry.
(g) |
||||||||||||||||
| h | E | W | L | F | h1 | θ | B | C | s | L1 | T | |||||
| SBR25LUU | 27 | 30 | 60 | 130 | 47 | 11.5 | 50 degree | 40 | 100 | M6 | 12 | 14 | LM25UU-OP | 1960 | 3140 | 900 |

|
|
|
| SBR25LUU | |
|
SBR12LUU,SBR16LUU, SBR20LUU, SBR25LUU, SBR30LUU, SBR35LUU,SBR40LUU,SBR50LUU |
|
|
3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. |
|
